Equipment Advantages

1. Replace traditional solder process, save solder cost, improve product quality and added value
2. Replace the traditional resistance welding process, improve product quality
3. High efficiency (one person, one machine uninterrupted rotation cycle operation, about 1000-1200PCS per hour capacity)
4. High precision (using galvanometer scanning mode, solder joint deviation 0.03mm, to ensure the unity of product mass production, strong stability)
5. Good effect (each solder joint can be adjusted to different parameters, real-time control of spot energy)
6. Simple operation (control software humanized design, strong anti-sluggishness, general workers can operate)
7. Low maintenance cost (the whole machine only needs to replace the xenon lamp tube in about 8 months, and the life span is up to 8 million times)

Machine Technical Parameters

Introduction to Equipment Usage Environment

1. Ambient temperature: 15°C ~40°C.
2. Humidity: 40%~80%, non-condensing.
3. Power supply requirements: AC 380V, 50Hz, power grid fluctuation ±5%, grounding must comply with international standards.
4. In areas where voltage fluctuations exceed 5%, automatic voltage and current stabilizing devices must be installed.
5. No strong electromagnetic interference should be present near the installation site, avoid placing the equipment near radio transmission stations or relay stations.
6. Foundation vibration amplitude: less than 50 μm, vibration acceleration: less than 0.05 g, avoid proximity to heavy stamping or machining equipment.
7. The equipment space must be smoke-free and dust-free, avoiding environments with severe metal polishing or grinding dust.
8. In certain environments, anti-static flooring and enhanced shielding should be installed.

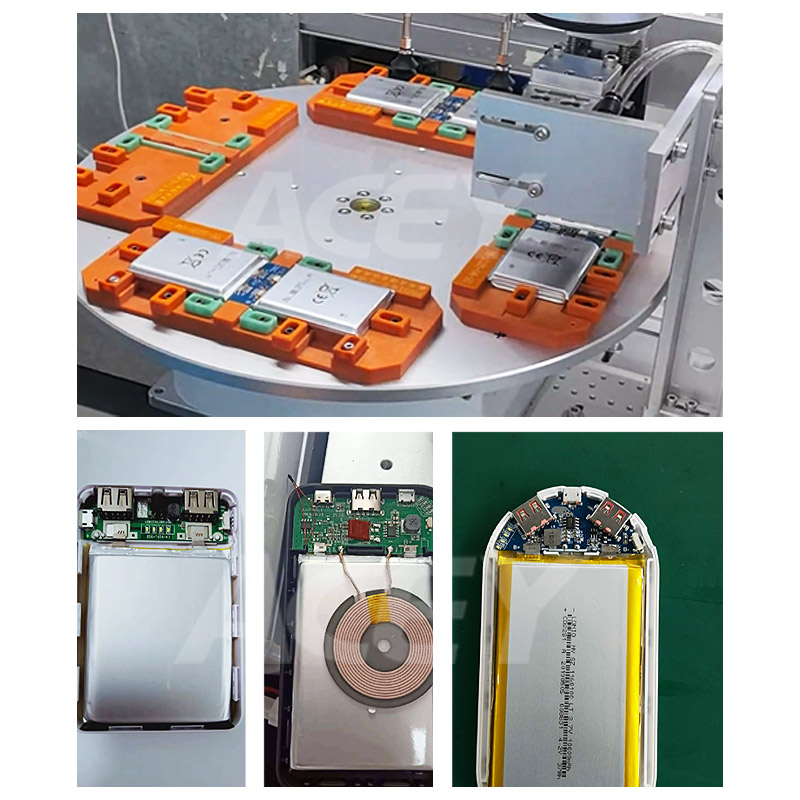

Product Display
