Equipment Advantages

• Equipped with universal fixtures and fast welding speed (with a production capacity of about 800PCS per hour)
• High precision (using galvanometer scanning mode, within a solder joint deviation of 0.03mm, ensuring consistency in mass production and strong stability)
• Good effect (each solder joint can be adjusted with different parameters and real-time control of spot energy)
• The system is easy to operate, featuring user-friendly control software, robust poka-yoke (error-proofing) design, and is accessible for general operators without specialized training
• Low maintenance cost (the consumables for the entire machine only need to be replaced once in about 8 months, with a lifespan of up to 8 million times)

Machine Technical Parameters

List of Main Equipment Configuration

Introduction to Equipment Usage Environment

• The ambient temperature is required to be between 15 and 40 ° C.
• The humidity requirement is 40%~80%, without condensation.
• Power grid requirements: AC220V50HZ; Power grid fluctuation: ± 5%, and the grounding wire of the power grid meets international requirements.
• In areas with a voltage amplitude of more than 5%, automatic voltage stabilizing and current stabilizing devices should be installed.
• There should be no strong electromagnetic signal interference near the installation equipment, and there should be no radio transmission stations (or relay stations) around the installation site.
• Foundation amplitude: less than 50um; Vibration acceleration: less than 0.05g; Avoid having a large number of stamping and other machine tools nearby.
• The equipment space should be ensured to be smoke-free and dust-free, avoiding working environments with severe dust such as metal polishing and grinding.

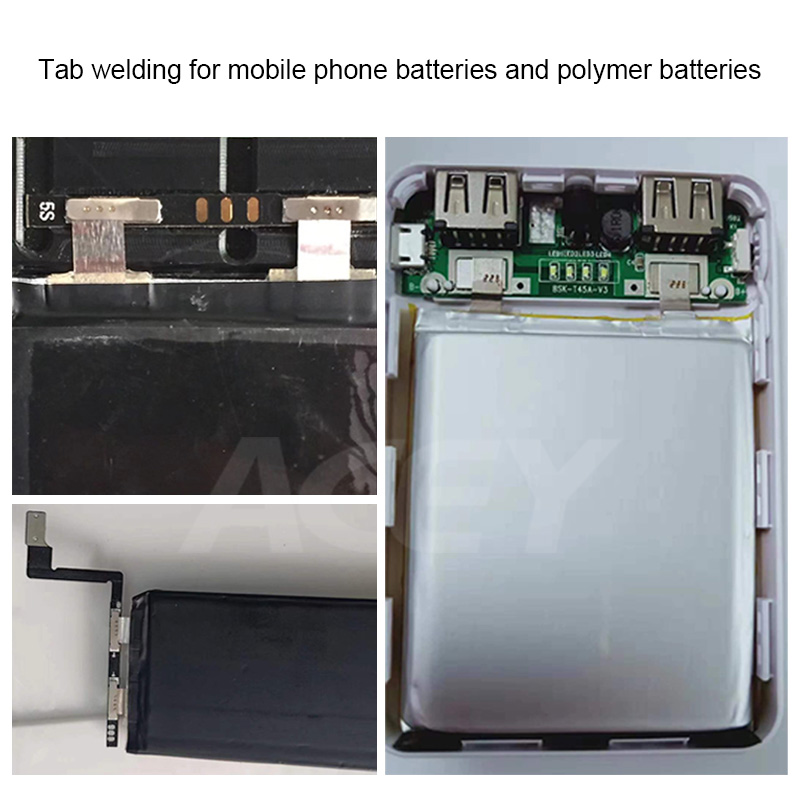

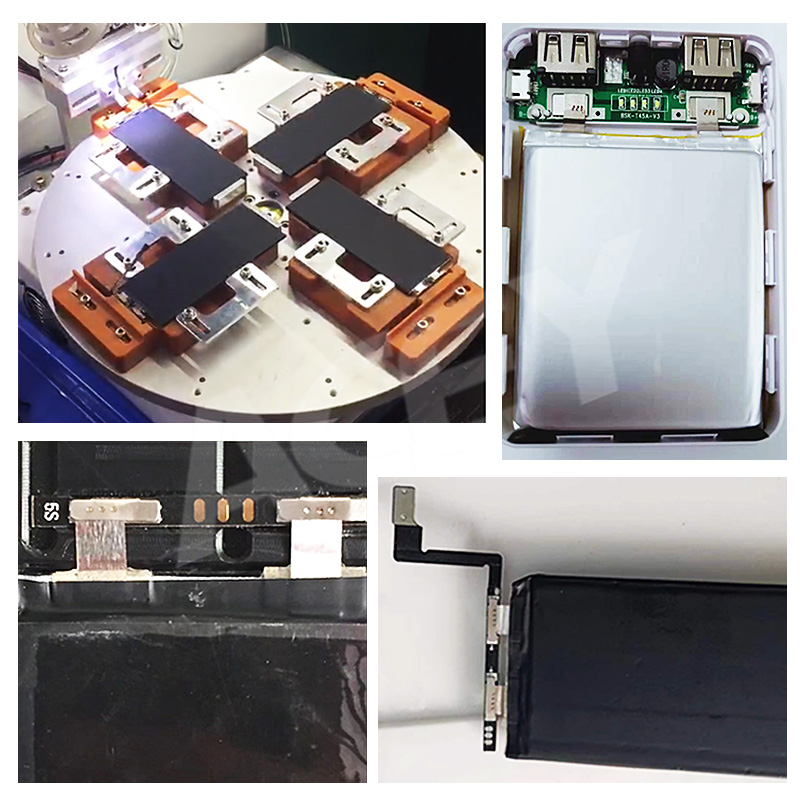

Product Display
