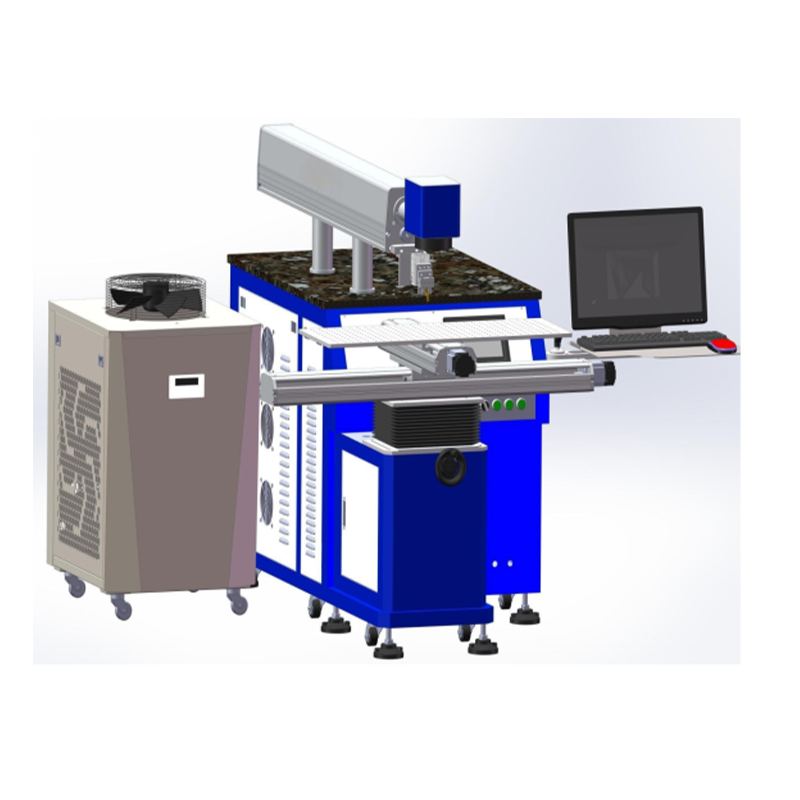

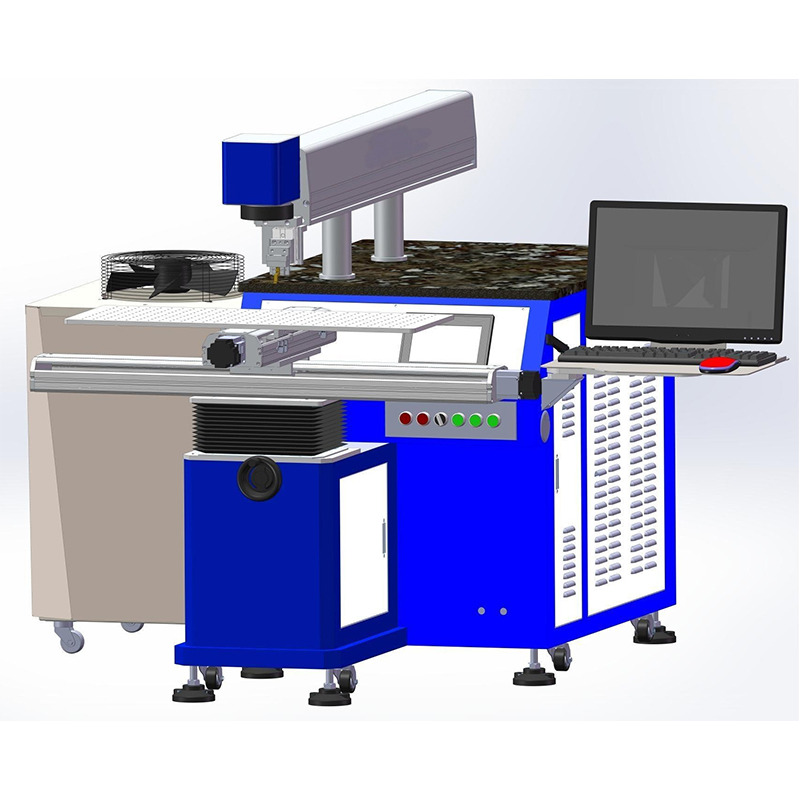

200W Laser Welding Machine For Laptop Lithium Ion Batteries

ACEY-LTW-200 Battery laser welding machine is used for series parallel electrode tab welding of polymer and cylindrical batteries.



  • Brand :

    ACEY
  • Item No. :

    ACEY-LTW-200
  • Customization :

    OEM&ODM Available
  • Order(MOQ) :

    1 Set
  • Compliance :

    CE Certified
  • Payment :

    T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, Etc
  • Warranty :

    One Year Warranty With Lifetime Support
  • Product Origin :

    China
  • Package :

    Internal: Anti-Collision Protectio, External: Plywood Case
  • Shipment :

    By Air, Sea, Express, etc.

200W Laser Welding Machine For Laptop Lithium Ion Batteries

Product Description

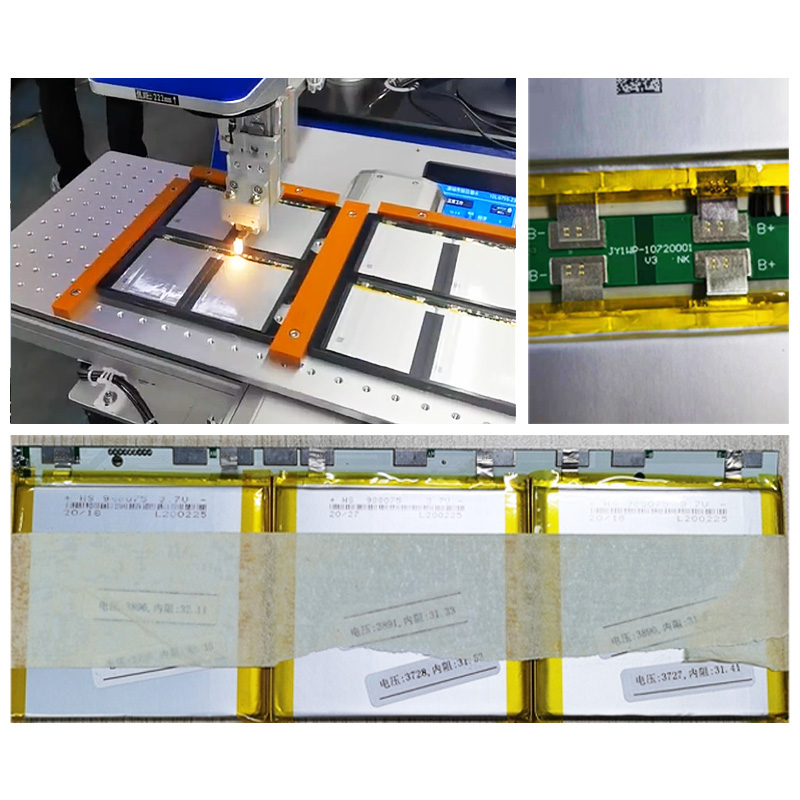

ACEY-LTW-200 battery laser welding machineis used for laptop battery pack/tablet battery /ipad battery/smart lock battery welding.







Equipment Advantages

  • Instead of the traditional solder high temperature caused by the phenomenon of falling off, save labor costs, improve the stability of the battery pack.
  • Double station fixture design, reduce manual loading and unloading time.

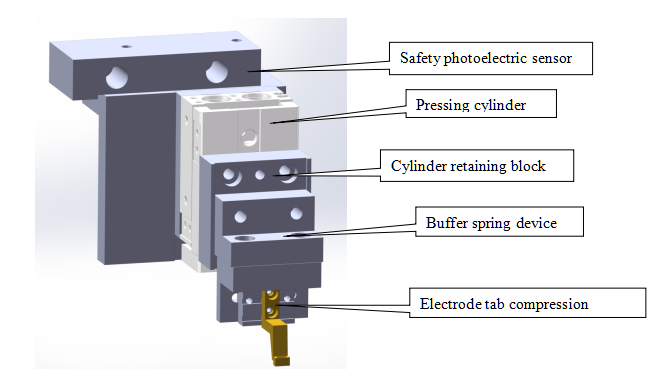

  • Precision pneumatic fixture can solve the connection sheet and battery electrode tab close, avoid the phenomenon of false welding.

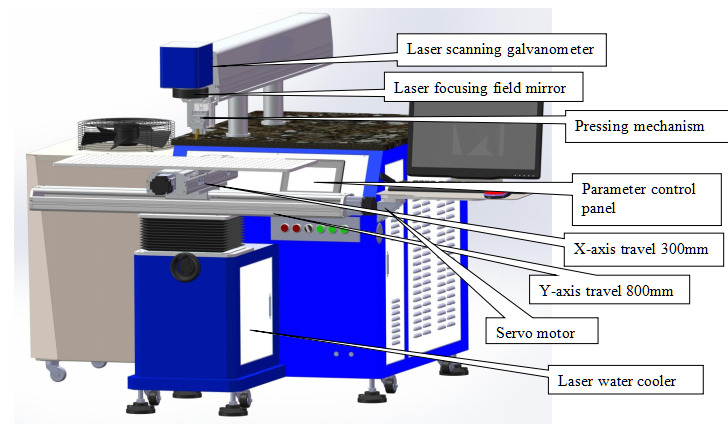

  • Using galvanometer scanning mode (laser welding, XY axis module and welding products do not need to move), to achieve high stability and high efficiency.
  • The software is simple to operate, and the general worker can master the skills within 2 hours.



Machine Technical Parameters

Equipment parameters

Model

ACEY-LBW

Laser power

200W

Laser wavelength

1064nm

Beam quality

M2 <1.5

Laser output power

1%~100%

Laser output frequency

1%~50%KHz

Welding range

1mm-80mm

Focused light spot diameter

0.3mm-2mm

Repetitive accuracy

±0.03mm

System operating environment

WindowsXP

Cooling method

water-cooling

Operating ambient temperature

10℃~38℃

Power Requirement

220V/50Hz/60A



Introduction to Equipment Usage Environment

  • The ambient temperature is required to be between 15 and 40 ° C.
  • The humidity requirement is 40%~80%, without condensation.
  • Power grid requirements: AC220V50HZ; Power grid fluctuation: ± 5%, and the grounding wire of the power grid meets international requirements.
  • In areas with a voltage amplitude of more than 5%, automatic voltage stabilizing and current stabilizing devices should be installed.
  • There should be no strong electromagnetic signal interference near the installation equipment, and there should be no radio transmission stations (or relay stations) around the installation site.
  • Foundation amplitude: less than 50um; Vibration acceleration: less than 0.05g; Avoid having a large number of stamping and other machine tools nearby.
  • The equipment space should be ensured to be smoke-free and dust-free, avoiding working environments with severe dust such as metal polishing and grinding.

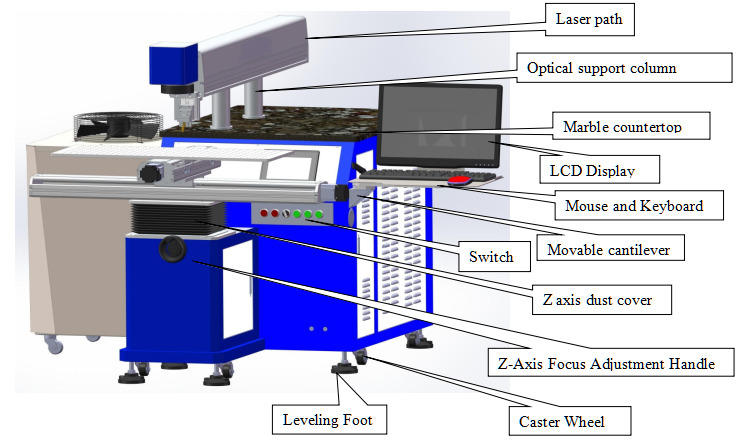

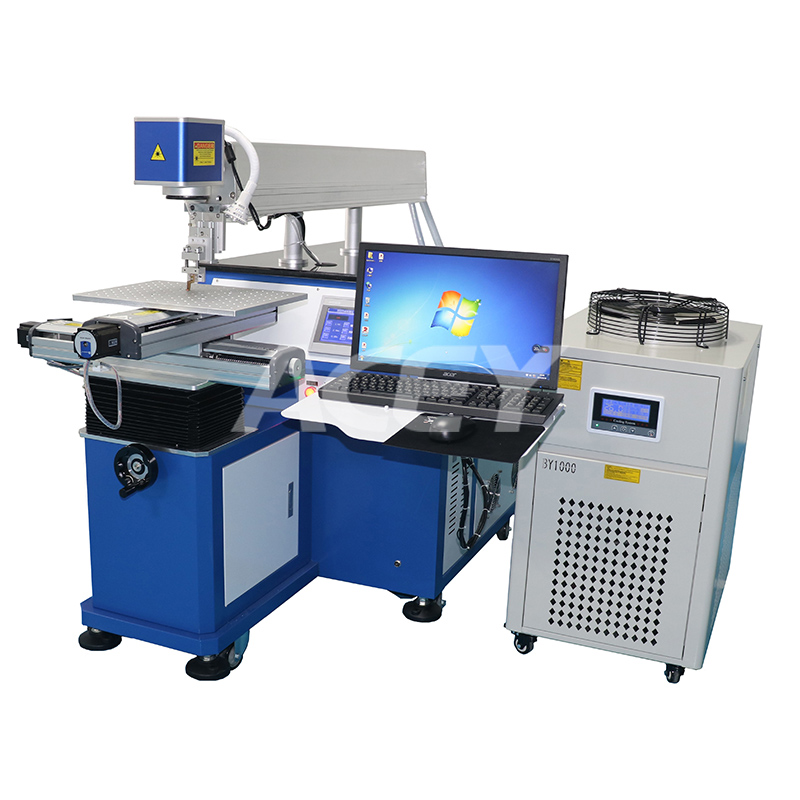

Product Display
