ACEY-RT200 Battery internal resistance tester is used to test the voltage and internal resistance of lithium battery. It has many kinds of clamps.And It can test cylindrical battery, pouch cell and prismatic cell.
Brand :
ACEYItem No. :
ACEY-RT200Customization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description
ACEY-RT200 is an instrument used to measure the internal resistance of the battery and the degree of damage to the battery acid film.The internal resistance value is used to judge the deterioration state of the battery. Therefore, the method of detecting the battery by measuring the internal resistance is a good method with high speed and high reliability.
Features
Technical Parameters
| Scope of application | Lithium ion, lithium polymer batteries and finished batteries | |||||
| Ni-MH and Ni-Cd batteries | ||||||
| Lead-acid batteries and maintenance-free batteries | ||||||
| It is also applicable to scientific research units and manufacturers of various battery research and testing | ||||||
| Measuring range | internal resistance 2-200mΩ/voltage 0-19.99V | |||||
| Resolution | 0.1mΩ/0.01V | |||||
| Measuring time | 100mS | |||||
| Accuracy | ±1mΩ ±0.01V | |||||
| Input impedance | 10K | |||||
| Dimension | 300 x 250 x 100 (mm) | |||||
| Weight | 7kg | |||||

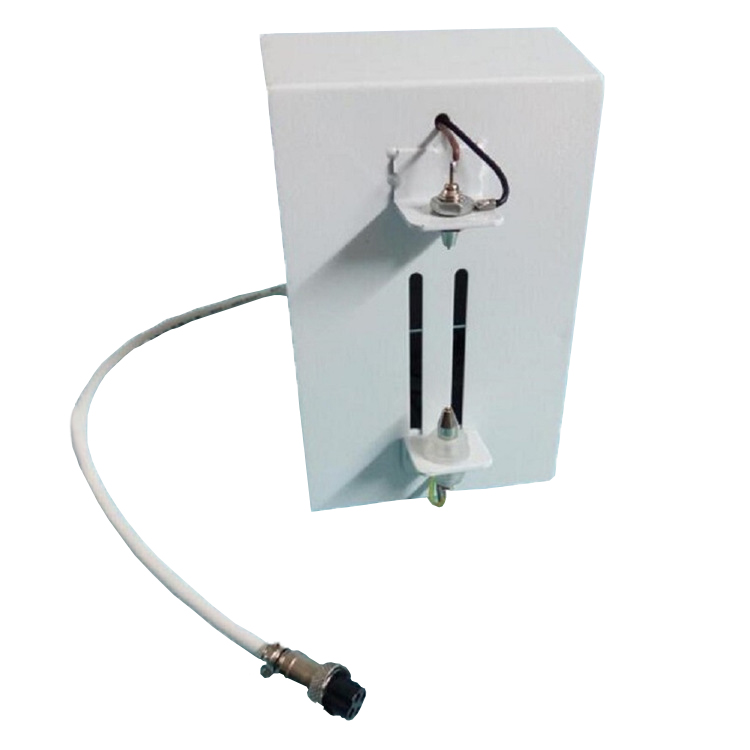

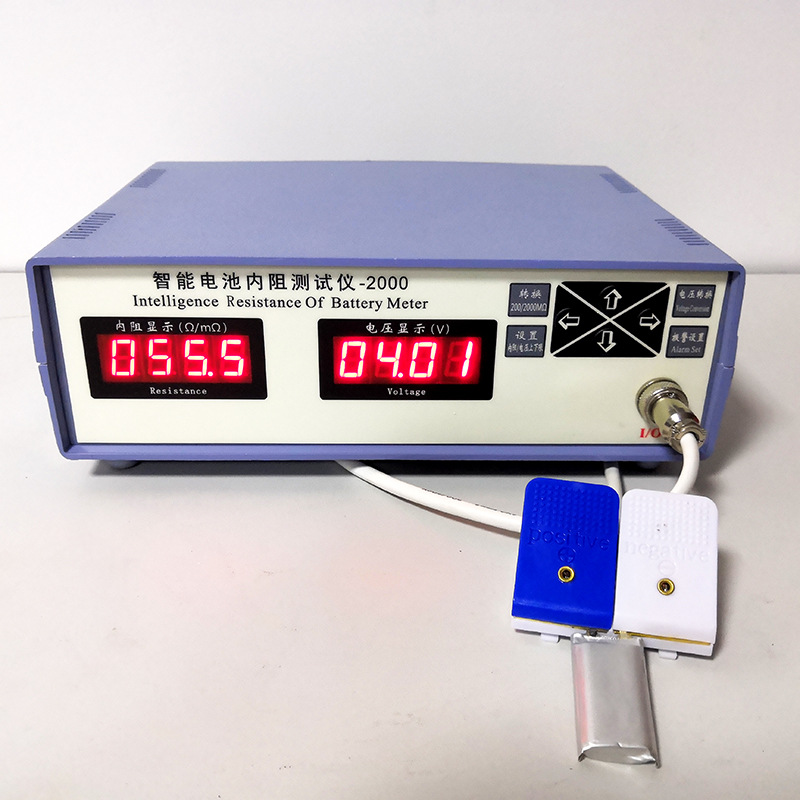

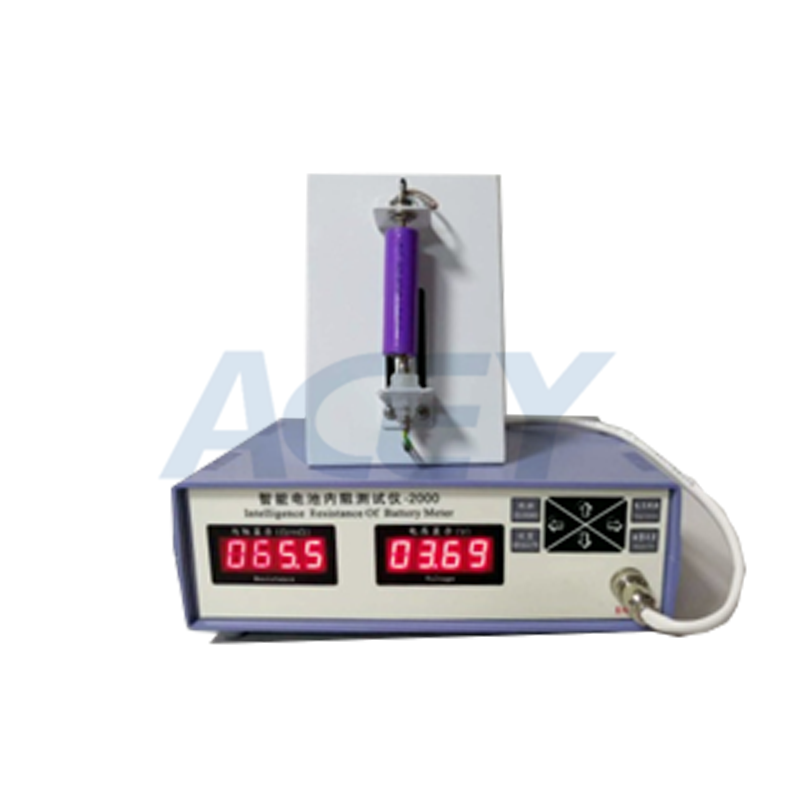

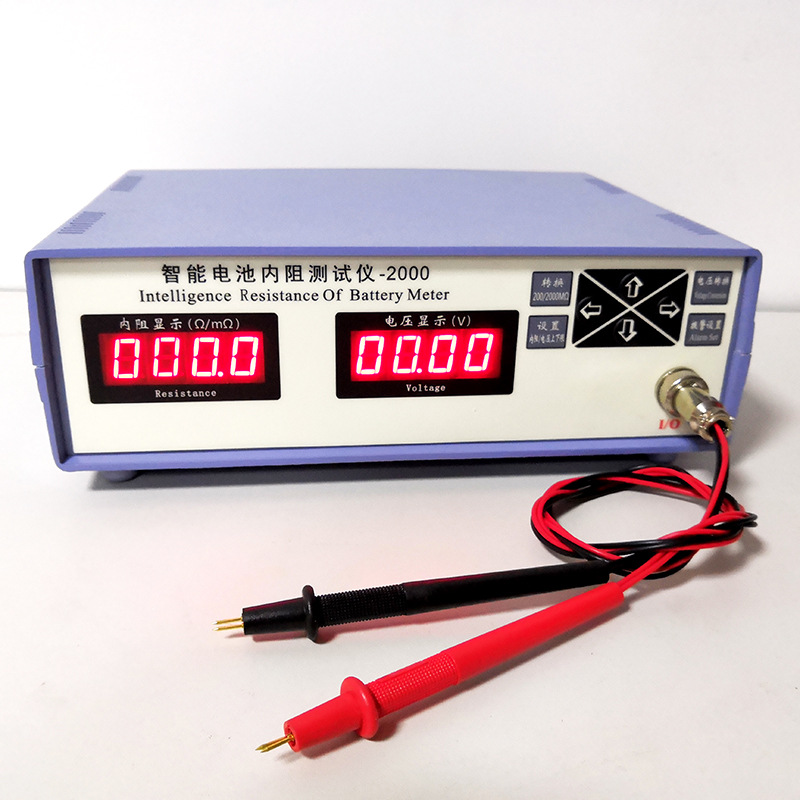

Product Display
