The HK3560 Ir tester is equipped with standard RS232 interface and handlerinterface features, with automatic battery measurement function. The maximum test speed can reach 100 times/second.
Brand :
ACEYItem No. :
ACEY-HK3560Customization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description
The HK3560 high-precision battery internal resistance tester is designed for the new measurement requirements of the battery industry. It is suitable for low-resistance batteries, large-capacity lithium battery packs, and rapid product classification on production lines. With the technical advantages ,the HK3560 can provide a high resolution of 0.1uΩ, a maximum test voltage of 60V, and a test cycle of 10ms.
Features
●High sampling test, with a minimum feedback time of 10ms, suitable for rapid classification on the production line.
●Voltage testing up to 60V, suitable for performance testing of battery packs.
●High resolution for resistance and voltage measurements.
●Strong anti-interference capability.
●Support for data export via USB drive.
Technical Parameters
| ACEY-HK3560 | |
| Measurement parameters | ESR, DCV |
| Basic accuracy | Internal resistance Ω: 0.3% voltage V: 0.01% |
| Test Range | Internal resistance Ω : 0.1μΩ ~3kΩ V: 10μV~60V |
| Singnal Source | Measure the current frequency: 1kHz; |
| Open circuit voltage <5V; test current <100mA | |
| Range | 7 ranges: -3mΩ, 30mΩ, 300mΩ, 3Ω, 30Ω, 300Ω, 3kΩ; automatic or manual test mode for full range. |
| Sampling Rate | 100 times per second, 50 times per second, |
| 20 times per second, 3 times per second | |
| Max Reading | IR Ω 32,000 &Voltage V 600,000 |
| Calibration | Short circuit is cleared within the full range |
| Comparator | 30 groups of records, 7 levels of sorting, and level counting |
| Others | The data is exported and stored in the U disk |
| Trigger mode | Internal/manual/external |

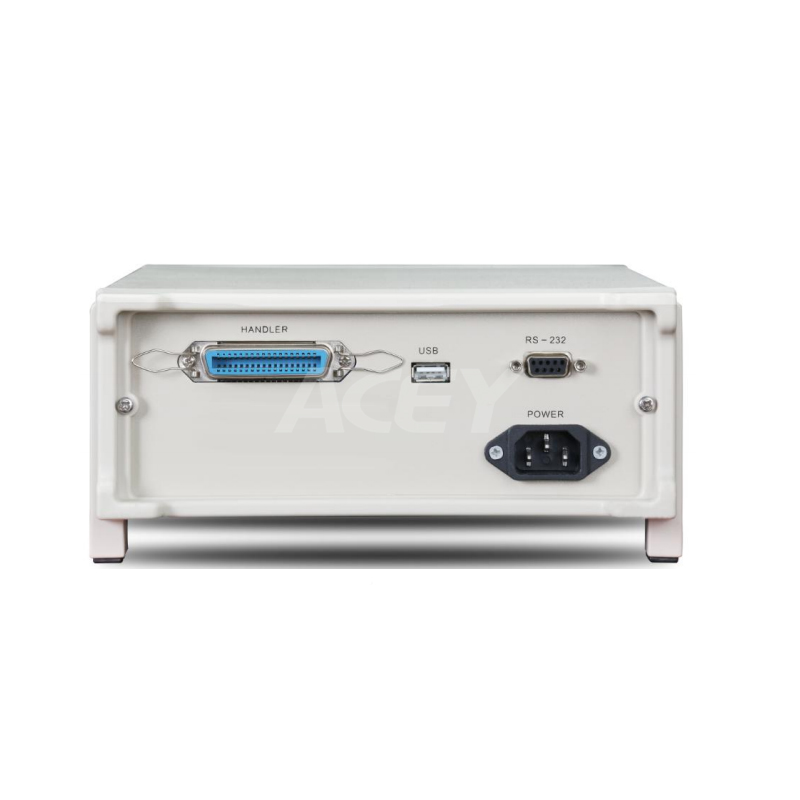

| Interface | RS-232C, Handler (PLC interface), USB(Host) |
| Power supply | Voltage :90VAC~250VAC; Frequency: 47Hz~400Hz ; |
| Power: Max 15VA | |
| Dimension & weight | Size: 325 mm*215 mm*80 mm; Weight: 3 kg |

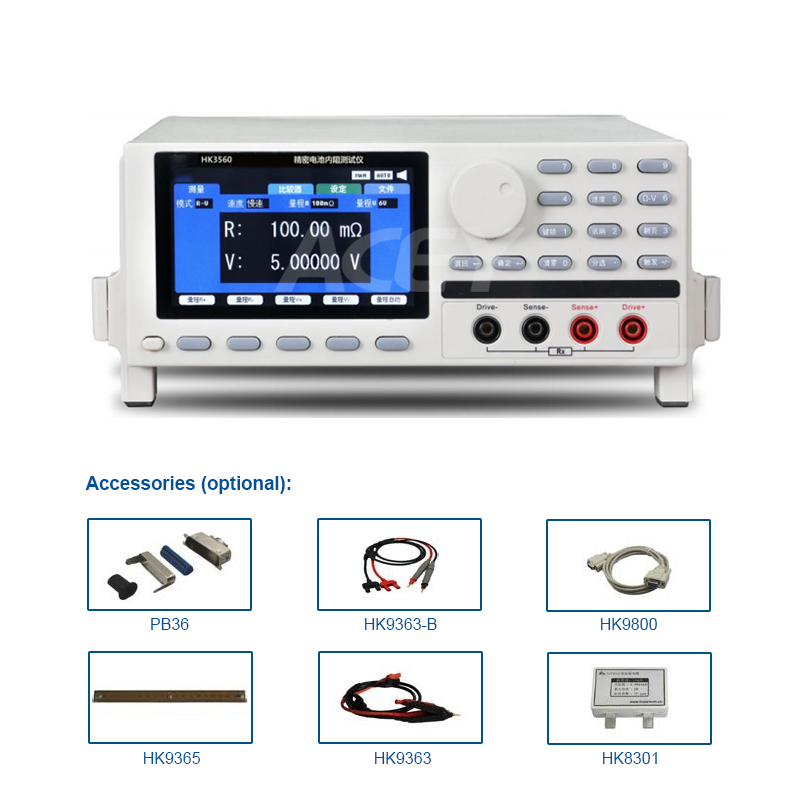

| Accessories | FB36 HK9363 HK9800 |
| Options | HK9363-B test probe HK9365 |
| Others | Internal resistance Ω : 0.1μΩ ~3kΩ /V: 10μV~60V |

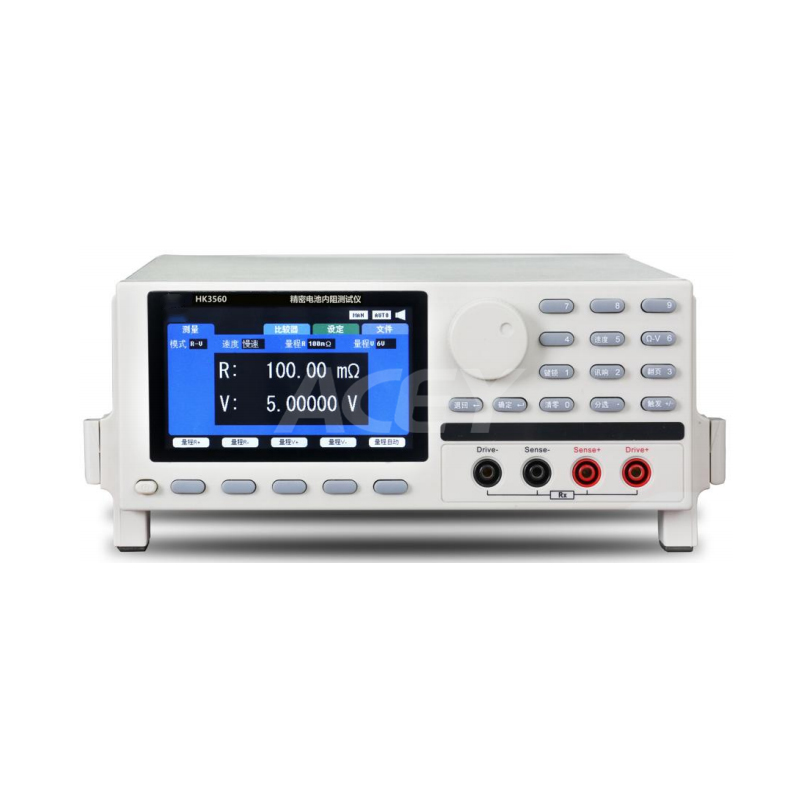

Product Display
