This product is suitable for die-cutting and forming of battery positive and negative plates. The single-piece die-cutting of the plate-type pole piece is pneumatically used.
Brand :
ACEYItem No. :
ACEY-PDC-1Customization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description
This product is suitable for die-cutting and forming of battery positive and negative plates. The single-piece die-cutting of the plate-type pole piece is pneumatically used, and it can be placed in a glove box for use.
Features
Technical Parameters
| Punching size: | L85mmxW65mm (can be customized according to customer requirements); | ||||||
| Punching accuracy: | ±0.1 mm | ||||||
| Punching pressure: | Max. 1T (0.5MPa compressed air), the recommended pressure for punching battery pole pieces is 500Kg; | ||||||
| Die cutting stroke: | 35mm; | ||||||
| Compressed air: | 0.5MPa compressed air, if put in the glove box, the gas used is the same as the glove box; | ||||||
| Dimensions: | L350mm*W230mm*H300mm; | ||||||
| Equipment weight: | 32kg | ||||||

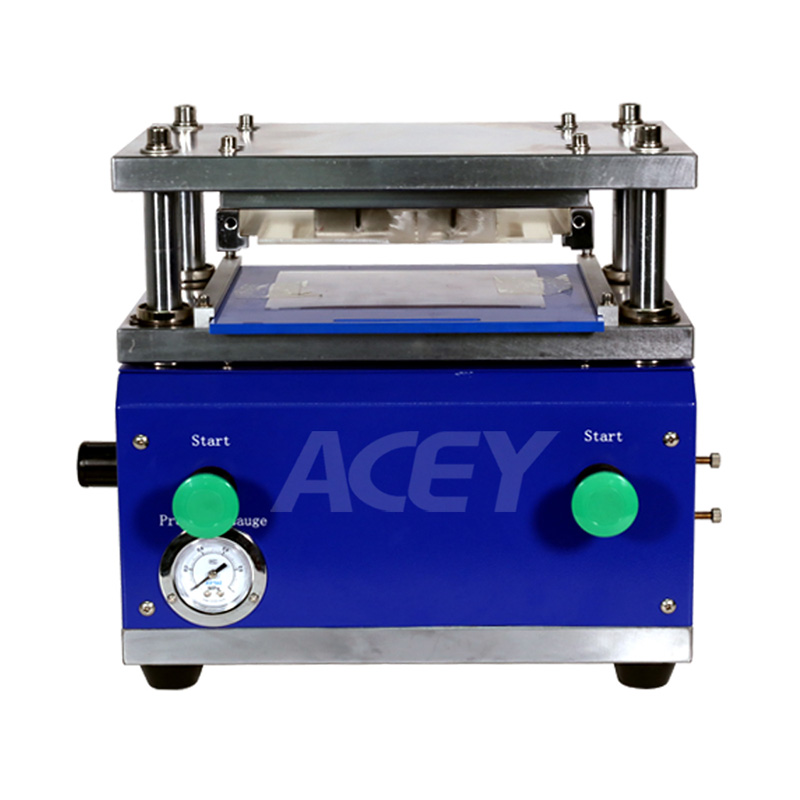

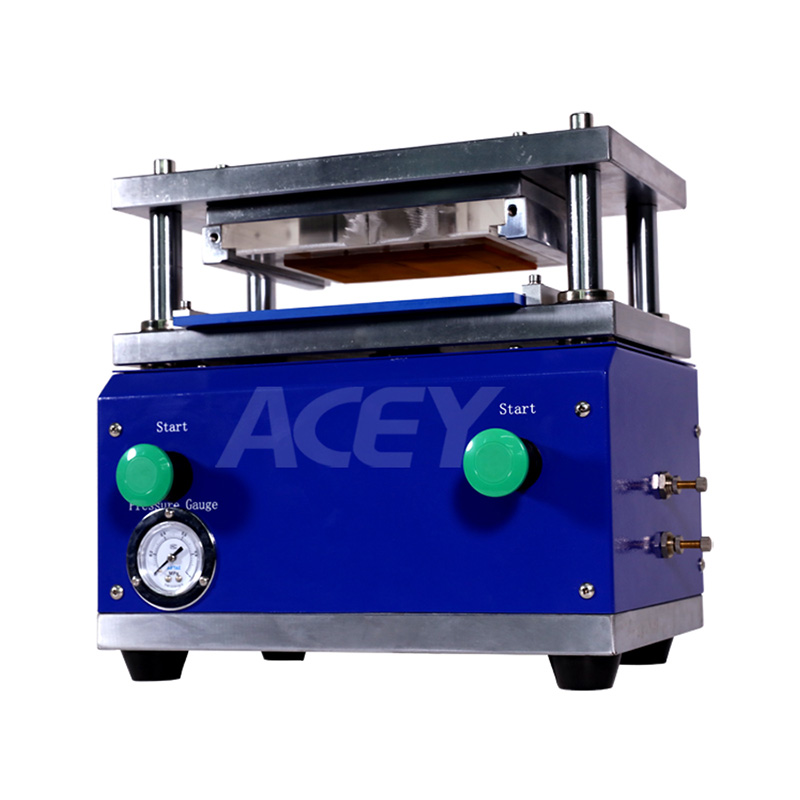

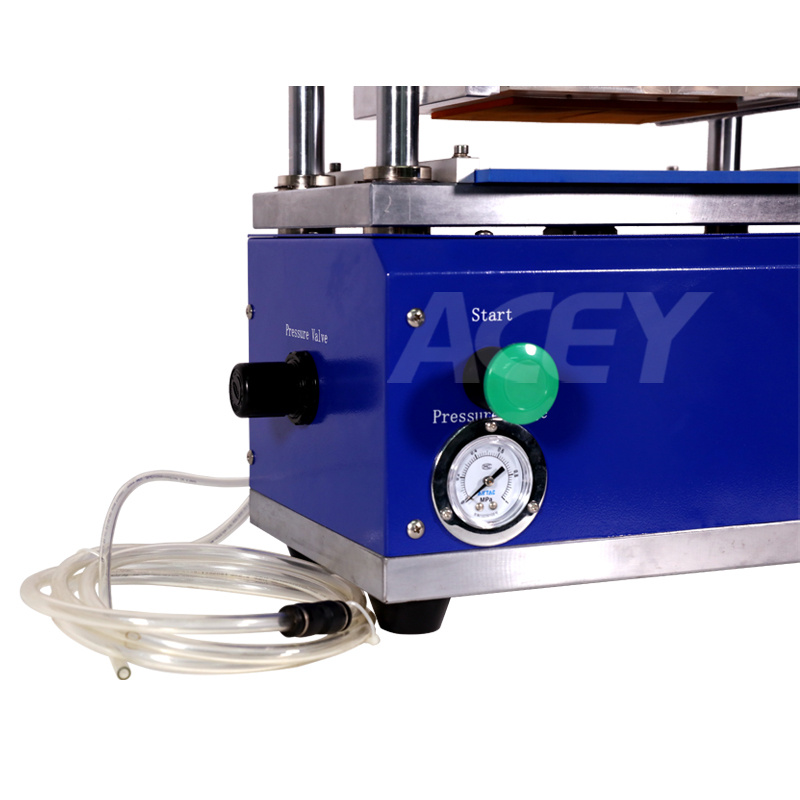

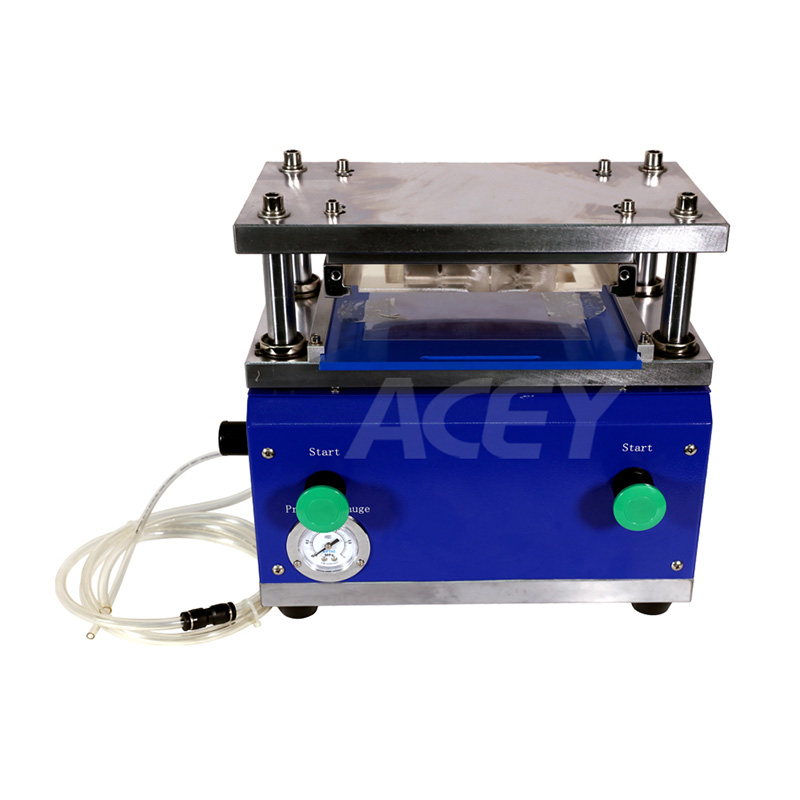

Product Display
