ACEY-PS3S battery cell sorting machine is used for automatic code scanning, automatic testing, and automatic sorting of internal resistance and voltage of prismatic batteries.
Brand :
ACEYItem No. :
ACEY-PS3SCustomization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description
ACEY-PS3S automatic prismatic battery sorting machine is equipped with a high-precision internal resistance and voltage automatic testing system. The device accurately sends the battery to the specified gear according to the internal resistance and voltage values set in the software. The system can achieve up to 3 levels of sorting. This equipment can test about 600 battery cells per hour, and its structural design is simple and elegant, the performance is stable, the equipment is easy to operate, and it is a cost-effective sorting equipment.
Features
Technical Parameters
| Equipment Efficiency | 10-12 PPM |
| Equipment Utilization Rate | ≥95% |
| Sorting Channels | 3 (2 good products, 1 defective product) |
| Applicable Battery Dimensions | Length: 90-250 mm, Width: 20-80 mm, Height: 80-300 mm |
| Internal Resistance Measurement Accuracy | ±0.5% rdg, Display Resolution: 0.01 mΩ |
| Voltage Measurement Accuracy | ±0.05% rdg, Display Resolution: 0.1 mV |
| Internal Resistance Measurement Repeatability Error | < 1 mΩ (AC Internal Resistance Measurement Method) |
| Voltage Measurement Repeatability Error | < 1 mV |
| Control System | PC-based Industrial Computer (Embedded System) |
| Input Power Consumption | 1 kW |
| Input Power Supply | AC 220V/50Hz |
| Compressed Air Source | ≥0.6 MPa |
| Display Screen | 21.5-inch Philips Large Display |
| Equipment Dimensions (L×W×H) | 2150×810×1700 mm |
| Whole machine weight | 350kg |

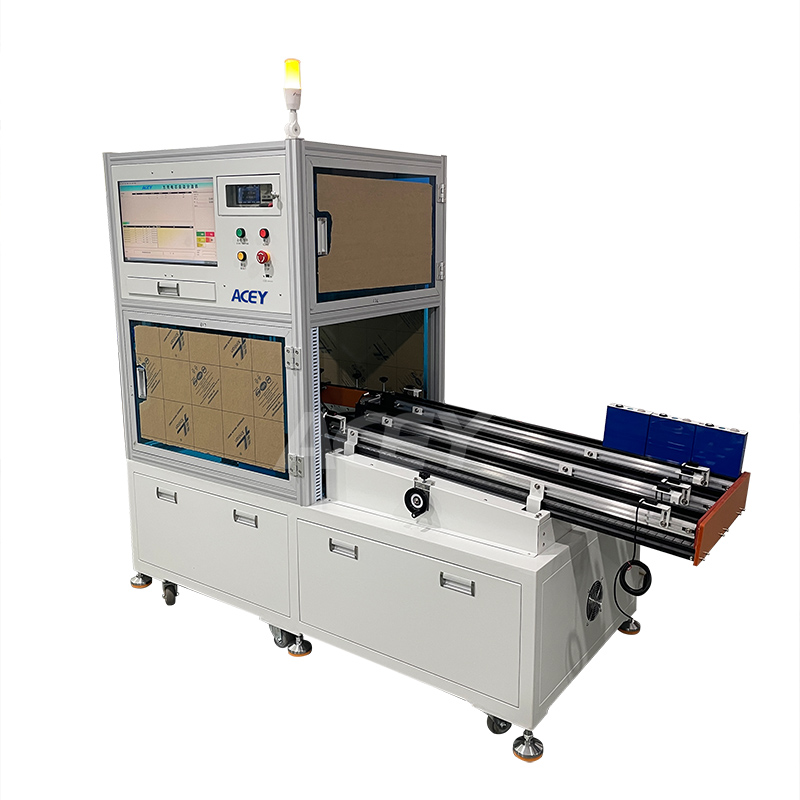

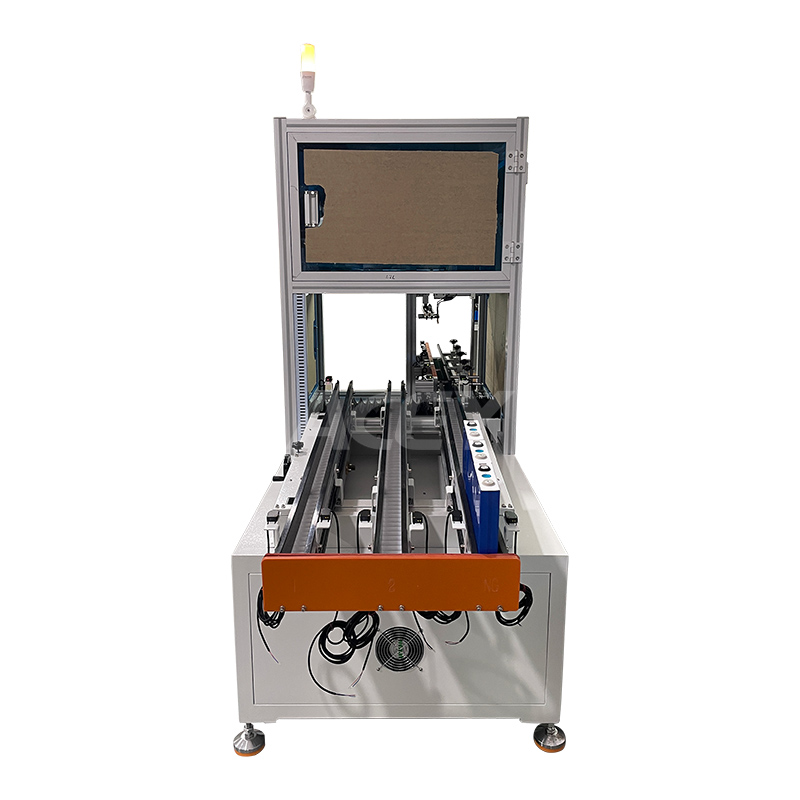

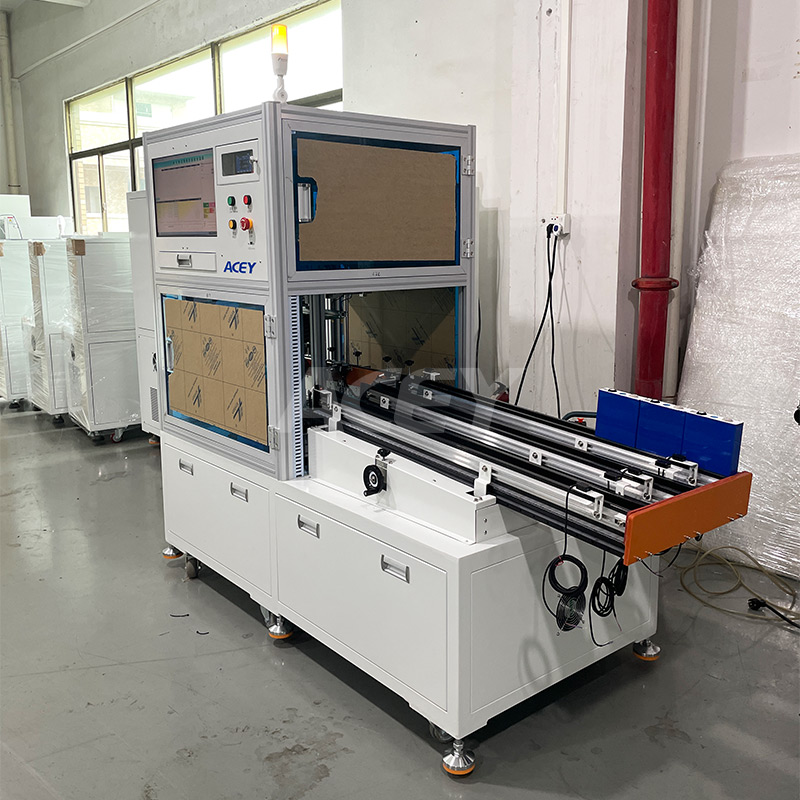

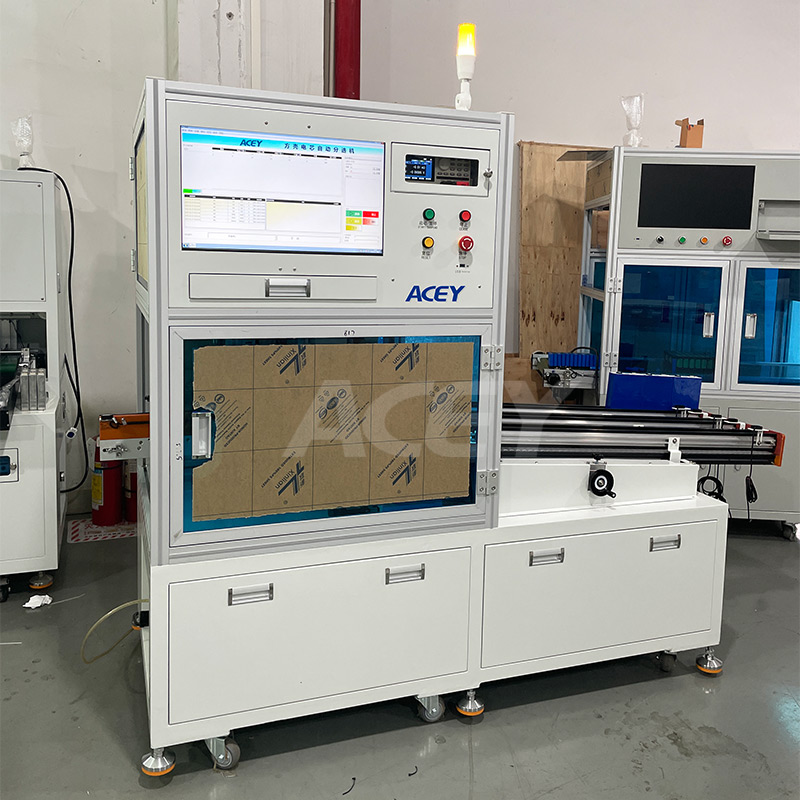

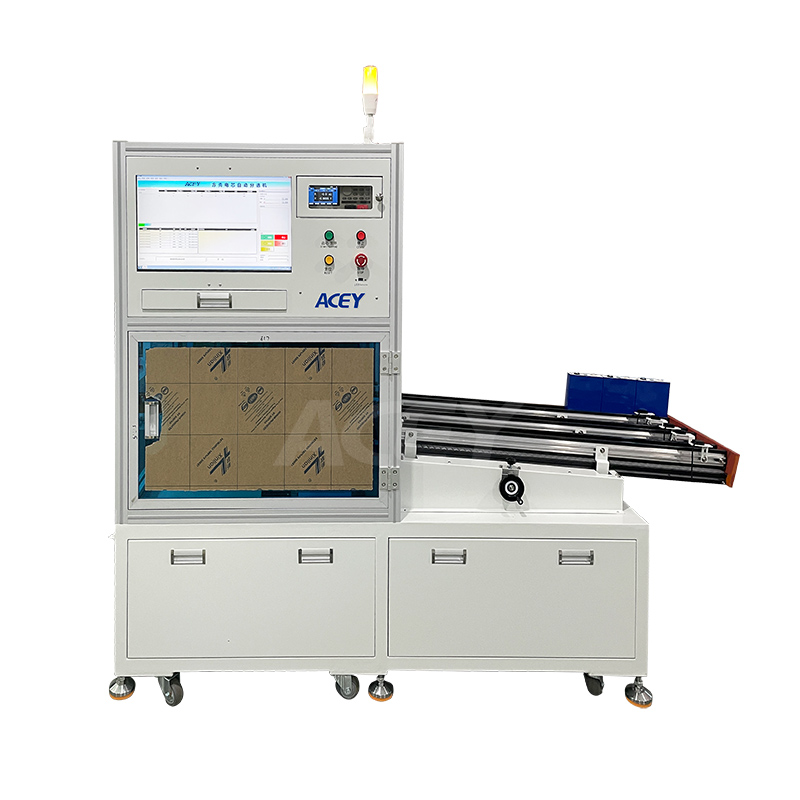

Product Display
